Easy Volume Rendering

Not too long ago I was looking for volume data of the human brain. I couldn't find much that was easy to work with, and one of the best data sets I could find at the time consisted of a demonstration, which you had to pay to get full access to, and a lower quality movie which ran through every slice, 'visible human' style.

Well, not considering MPEG's quality loss, I decided it would be easy enough to convert each frame in the movie into a slice in 3D space, and I also decided it would be really easy to hack together in Maya using MEL and a stack of textured planes. I whipped out a handy copy of linux's mplayer to extract each frame into a separate image, and then wrote a MEL script to apply each sequential image to its own shader and polygon plane.

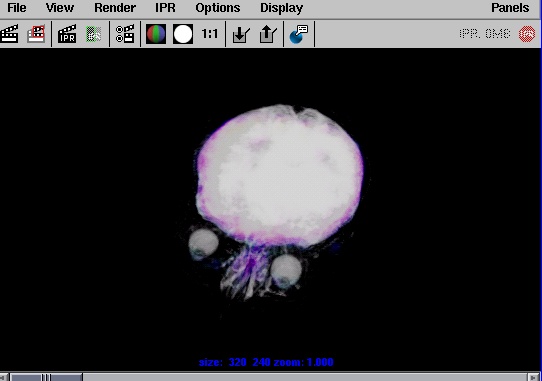

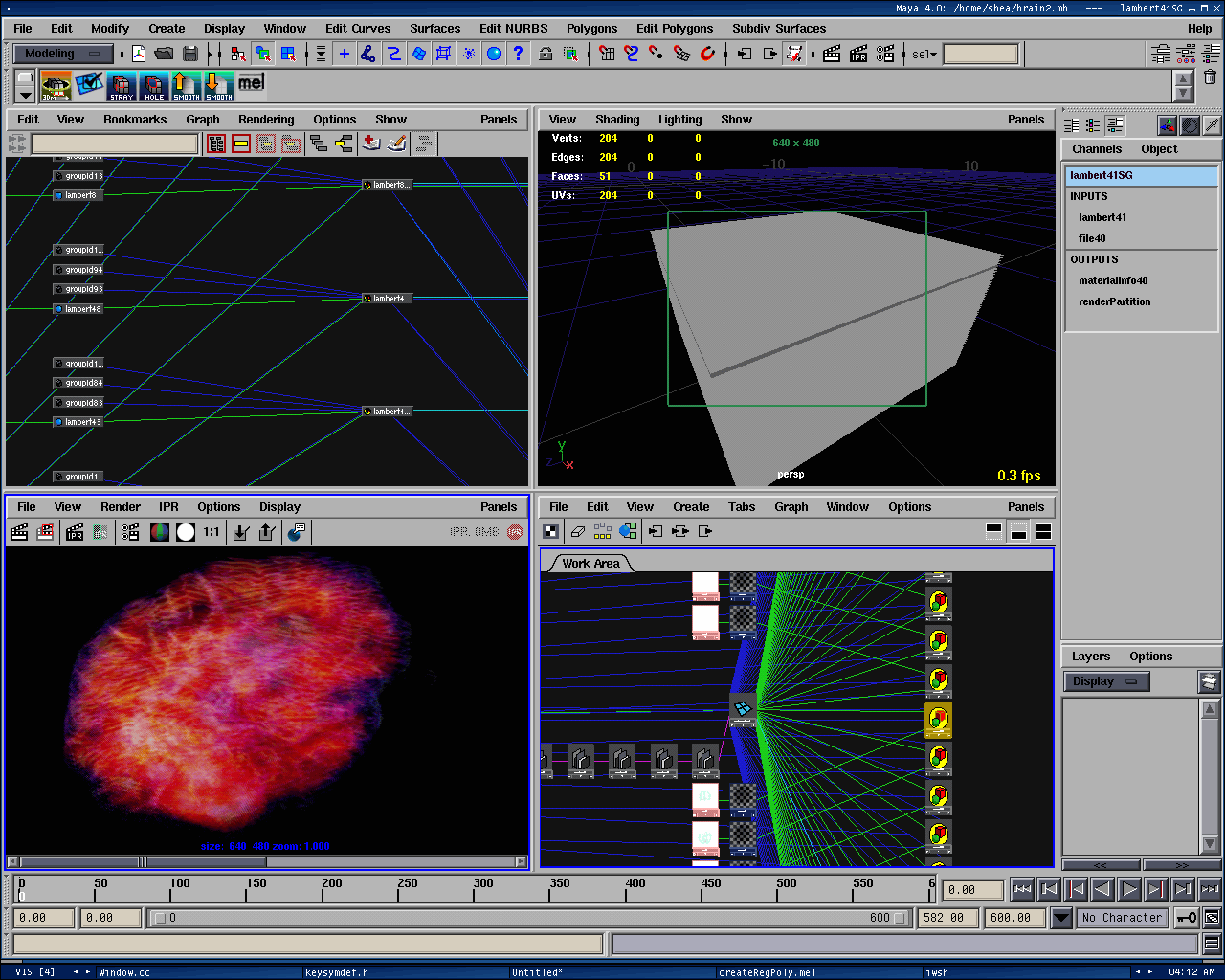

I won't even get into how slow it was, but it did work:




This is the MEL script that generates the volume slices:



	{

		string $file2d;
		string $lambert;
		string $intToStr;
		string $fileName;
		string $plane[];
		string $fullPlanePath[];

		string $prefix = "/home/shea/mdquad/";
		string $base = "00000000";
		string $format = ".jpg";

		int $slices = 32;		// number of slices to import ( starting with ($base) + 1 )

		float $spacing = 100;		// increase spacing to decrease gap.
		float $ambVal = 0.035;		// ambient brightness for volume
		float $alphaOffset = 0.36;	// transparency offset per slice

		for ($i=1; $i<$slices; $i++)
		{
			$file2d = createNode("file");
			$lambert = createNode("lambert");

			connectAttr( ($file2d+".outColor"), ($lambert+".transparency") );

			setAttr( ($file2d+".invert"), 1 );
			setAttr( ($file2d+".filterType"), 3 );

			setAttr( ($file2d+".colorOffsetR"), $alphaOffset );
			setAttr( ($file2d+".colorOffsetG"), $alphaOffset );
			setAttr( ($file2d+".colorOffsetB"), $alphaOffset );

			setAttr( ($lambert+".colorR"), 1 );
			setAttr( ($lambert+".colorG"), 1 );
			setAttr( ($lambert+".colorB"), 1 );

			setAttr( ($lambert+".ambientColorR"), $ambVal );
			setAttr( ($lambert+".ambientColorG"), $ambVal );
			setAttr( ($lambert+".ambientColorB"), $ambVal );


			$intToStr = string($i);
			$fileName = ( $prefix + (substring($base, 1, 8-size($intToStr)) + $intToStr + $format) );

			setAttr( "-type", "string", ($file2d+".fileTextureName"), $fileName );


			$plane = polyPlane("-sx", 1, "-sy", 1, "-ch", 0, "-n", $fileName);
			xform("-ws", "-a", "-t", 0, float($i)/$spacing, 0, $plane[0]);
			$fullPlanePath = listRelatives("-f", $plane[0]);

			inform($fileName);

			defaultNavigation("-source", $lambert, "-destination"
				, ($fullPlanePath[0]+".instObjGroups[0]"), "-connectToExisting");
			connectNodeToAttrOverride($lambert, ($plane[0]+".instObjGroups[0]") );
		}


	}
